Courtyard Kindergarten

drag to orbit

Courtyard Kindergarten: 182 source entities compile into 673 solids, 19 coordinated views and 13 discipline sheets. Every view below is regenerated from that same source model.

182entities in
673solids compiled
3buildings
3levels
8rooms
0errors

Generated views

The model, rendered

Generated from the compiled model, each at a camera the interactive view above already offers. Not photographs — this building does not exist.

Generated photorealistic whole site view of Courtyard Kindergarten, at the same camera as the interactive model above
WHOLE SITE

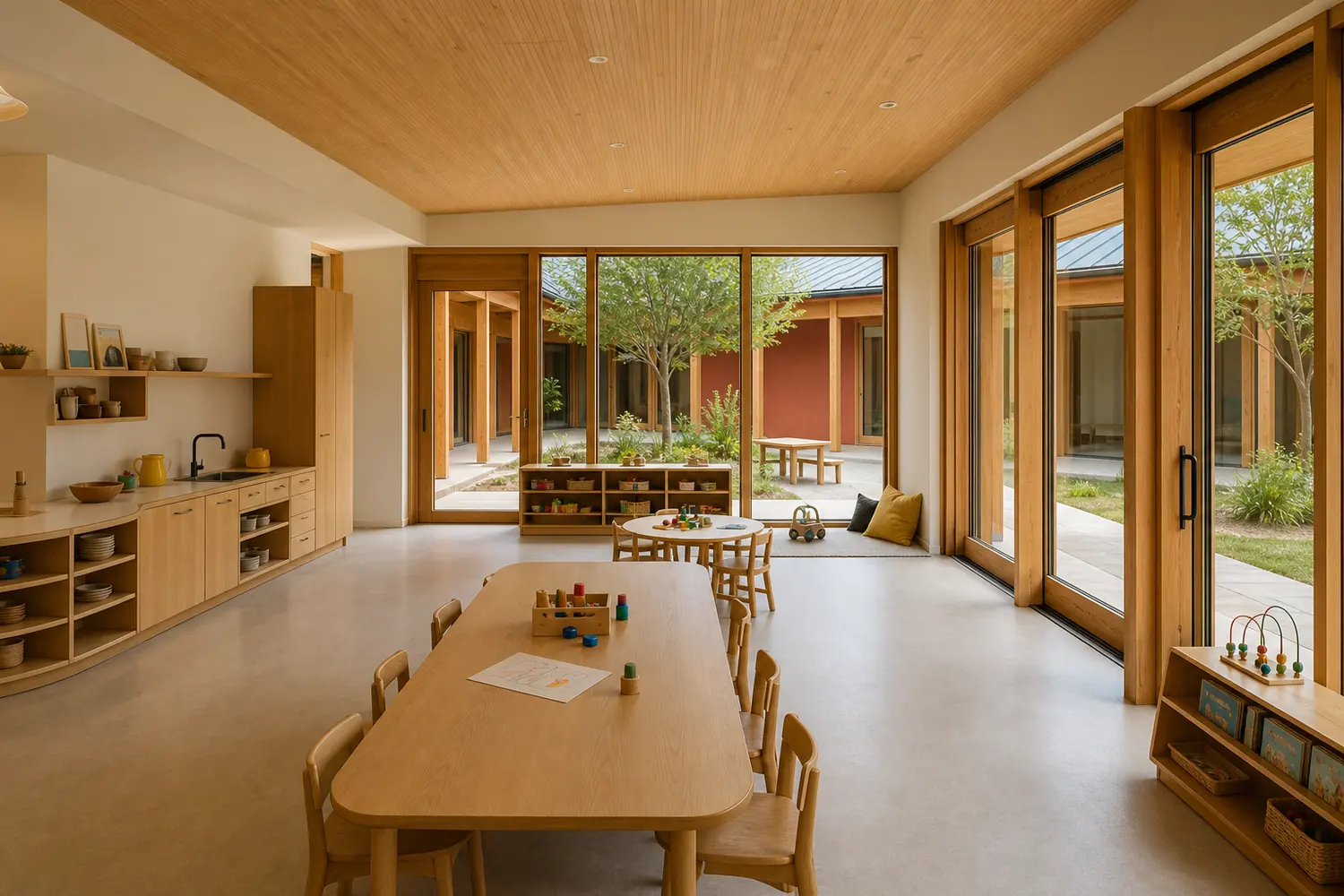

Generated photorealistic family commons + teaching kitchen view of Courtyard Kindergarten, at the same camera as the interactive model above
FAMILY COMMONS + TEACHING KITCHEN

Continue elsewhere

Model files

Take the same compiled building into an editor, a BIM workflow, or a realtime 3D scene.

Source

NDJSON

The authored model. Edit it, diff it, or feed it to an agent.

Opens in
  • bimtex
23 KB Download
BIM exchange

IFC 4

Buildings, storeys, walls, openings, rooms, slabs and roofs.

Opens in
  • SketchUp
  • Revit
  • AutoCAD Arch.
74 KB Download
Web 3D Three.js ready

GLB

PBR geometry ready for Three.js and other glTF viewers.

Opens in
  • SketchUp
  • Three.js
  • Blender
17.3 MB Download
Universal mesh

OBJ

Metre-based, z-up geometry with named objects; no MTL or BIM data.

Opens in
  • Blender
  • Revit
3.6 MB Download
A-001

Site plan

Parcel, grade, setbacks, paving, landscape, fences and streets are compiled beside the building rather than by a separate site renderer.

A-301

CLASSROOM PAVILIONS — Section X–X

The X–X cut is placed automatically in clear space; structure at the plane draws heavy and the authored grade masks construction below ground.

A-401

CLASSROOM PAVILIONS — Roof-off cut-away

The roof surfaces are omitted from the same projection so interior walls, stairs, furniture and equipment remain coordinated.

The rest of the set

The same model also produced 23 further drawings, indexed here the way a construction set indexes its sheets. Open any drawing on this page — plate or thumbnail — to read it at full size and download it in every format it exports.

2 plans · 3 elevations · 1 section · 2 axonometrics · 1 egress plan · 1 design study · 13 issued sheets

One model, so the views cannot disagree

Move a slider. The model recompiles in this browser and both views redraw from the result. Push the storey height beyond a valid configuration and the real validator turns the verdict red.

Plan · live cut

North elevation · live projection

The model

Open in playground ↗
// Courtyard Kindergarten — a new early-years campus organised as a small village.
// Three single-storey gabled pavilions frame a secure planted learning courtyard.
// A low timber cloister links every room directly to the shared outdoor space.
{"t":"project","id":"courtyard-kindergarten","name":"Courtyard Kindergarten","summary":"Three child-scaled learning pavilions gathered around a protected garden classroom.","unit":"m","typology":"civic","frontSide":"south","light":"morning"}
{"t":"parcel","id":"lot","x":0,"y":0,"w":40,"d":30,"address":"Synthetic early-years campus","frontage":"south"}
{"t":"grade","id":"grade","elev":0}
{"t":"setback","id":"lot-setback","all":2}

// Three small buildings make a U-shaped village around the central garden.
{"t":"footprint","id":"north-wing","x":9,"y":4,"w":22,"d":8,"label":"CLASSROOM PAVILIONS"}
{"t":"footprint","id":"west-wing","x":4,"y":13,"w":9,"d":12,"label":"ATELIER PAVILION"}
{"t":"footprint","id":"east-wing","x":27,"y":13,"w":9,"d":12,"label":"COMMONS PAVILION"}
{"t":"level","id":"north-g","building":"north-wing","name":"Classrooms","elev":0,"height":3.6,"ceiling":3.25}
{"t":"level","id":"west-g","building":"west-wing","name":"Atelier","elev":0,"height":3.2,"ceiling":2.9}
{"t":"level","id":"east-g","building":"east-wing","name":"Commons","elev":0,"height":3.4,"ceiling":3.05}

// Rooms are shallow, daylit, and each has its own threshold to the courtyard.
{"t":"room","id":"classroom-sun","label":"Sun Classroom","use":"classroom","level":"north-g","x":0.3,"y":0.3,"w":10.7,"d":7.4}
{"t":"room","id":"classroom-sky","label":"Sky Classroom","use":"classroom","level":"north-g","x":11,"y":0.3,"w":10.7,"d":7.4}
{"t":"room","id":"atelier","label":"Art Atelier","use":"classroom","level":"west-g","x":0.3,"y":0.3,"w":8.4,"d":7.2}
{"t":"room","id":"quiet-room","label":"Story Room","use":"assembly","level":"west-g","x":0.3,"y":7.5,"w":8.4,"d":4.2}
{"t":"room","id":"commons","label":"Family Commons","use":"assembly","level":"east-g","x":0.3,"y":0.3,"w":8.4,"d":5.3}
{"t":"room","id":"kitchen","label":"Teaching Kitchen","use":"kitchen","level":"east-g","x":0.3,"y":5.6,"w":4.2,"d":6.1}
{"t":"room","id":"child-wc","label":"Children's WC","use":"bathroom","level":"east-g","x":4.5,"y":5.6,"w":4.2,"d":3}
{"t":"room","id":"staff","label":"Staff Room","use":"office","level":"east-g","x":4.5,"y":8.6,"w":4.2,"d":3.1}

// Warm mineral walls outside, timber faces toward the garden.
{"t":"wall","id":"north-n","level":"north-g","side":"north","type":"exterior","thickness":0.28,"material":"kg-clay"}
{"t":"wall","id":"north-s","level":"north-g","side":"south","type":"exterior","thickness":0.28,"material":"kg-timber"}
{"t":"wall","id":"north-e","level":"north-g","side":"east","type":"exterior","thickness":0.28,"material":"kg-clay"}
{"t":"wall","id":"north-w","level":"north-g","side":"west","type":"exterior","thickness":0.28,"material":"kg-clay"}
{"t":"wall","id":"north-divider","level":"north-g","from":[11,0],"to":[11,8],"type":"partition","thickness":0.14}
{"t":"wall","id":"west-n","level":"west-g","side":"north","type":"exterior","thickness":0.28,"material":"kg-clay"}
{"t":"wall","id":"west-s","level":"west-g","side":"south","type":"exterior","thickness":0.28,"material":"kg-clay"}
{"t":"wall","id":"west-e","level":"west-g","side":"east","type":"exterior","thickness":0.28,"material":"kg-timber"}
{"t":"wall","id":"west-w","level":"west-g","side":"west","type":"exterior","thickness":0.28,"material":"kg-clay"}
{"t":"wall","id":"west-divider","level":"west-g","from":[0,7.5],"to":[9,7.5],"type":"partition","thickness":0.14}
{"t":"wall","id":"east-n","level":"east-g","side":"north","type":"exterior","thickness":0.28,"material":"kg-clay"}
{"t":"wall","id":"east-s","level":"east-g","side":"south","type":"exterior","thickness":0.28,"material":"kg-clay"}
{"t":"wall","id":"east-e","level":"east-g","side":"east","type":"exterior","thickness":0.28,"material":"kg-clay"}
{"t":"wall","id":"east-w","level":"east-g","side":"west","type":"exterior","thickness":0.28,"material":"kg-timber"}
{"t":"wall","id":"east-public-divider","level":"east-g","from":[0,5.6],"to":[9,5.6],"type":"partition","thickness":0.14}
{"t":"wall","id":"east-service-divider","level":"east-g","from":[4.5,5.6],"to":[4.5,12],"type":"partition","thickness":0.14}
{"t":"wall","id":"east-staff-divider","level":"east-g","from":[4.5,8.6],"to":[9,8.6],"type":"partition","thickness":0.14}

// Full-height garden doors alternate with low-sill windows for children.
{"t":"opening","id":"sun-garden-door","on":"north-s","kind":"door","at":5.8,"width":2.2,"leaves":2,"operation":"sliding","room":"classroom-sun","glass":"kg-glass"}
{"t":"opening","id":"sun-garden-window","on":"north-s","kind":"window","at":1,"width":3.6,"sill":0.45,"head":2.65,"glass":"kg-glass"}
{"t":"opening","id":"sky-garden-door","on":"north-s","kind":"door","at":13.5,"width":2.2,"leaves":2,"operation":"sliding","room":"classroom-sky","glass":"kg-glass"}
{"t":"opening","id":"sky-garden-window","on":"north-s","kind":"window","at":17.2,"width":3.8,"sill":0.45,"head":2.65,"glass":"kg-glass"}
{"t":"opening","id":"sun-north-light","on":"north-n","kind":"window","at":3.2,"width":3.2,"sill":0.8,"head":2.5,"glass":"kg-glass"}
{"t":"opening","id":"sky-north-light","on":"north-n","kind":"window","at":15.4,"width":3.2,"sill":0.8,"head":2.5,"glass":"kg-glass"}
{"t":"opening","id":"atelier-door","on":"west-e","kind":"door","at":1.4,"width":1.8,"leaves":2,"room":"atelier","glass":"kg-glass"}
{"t":"opening","id":"atelier-window","on":"west-e","kind":"window","at":4.2,"width":2.7,"sill":0.45,"head":2.45,"glass":"kg-glass"}
{"t":"opening","id":"story-door","on":"west-e","kind":"door","at":8.1,"width":1.2,"room":"quiet-room"}
{"t":"opening","id":"story-window","on":"west-e","kind":"window","at":9.8,"width":1.6,"sill":0.45,"head":2.35,"glass":"kg-glass"}
{"t":"opening","id":"atelier-west-light","on":"west-w","kind":"window","at":2.3,"width":3.2,"sill":0.65,"head":2.45,"glass":"kg-glass"}
{"t":"opening","id":"commons-window","on":"east-w","kind":"window","at":0.7,"width":2.3,"sill":0.45,"head":2.5,"glass":"kg-glass"}
{"t":"opening","id":"commons-door","on":"east-w","kind":"door","at":3.4,"width":1.4,"leaves":2,"room":"commons","glass":"kg-glass"}
{"t":"opening","id":"kitchen-door","on":"east-w","kind":"door","at":6.1,"width":1.1,"room":"kitchen"}
{"t":"opening","id":"wc-door","on":"east-e","kind":"door","at":6.2,"width":1,"room":"child-wc"}
{"t":"opening","id":"staff-door","on":"east-e","kind":"door","at":9.2,"width":1,"room":"staff"}
{"t":"opening","id":"commons-east-light","on":"east-e","kind":"window","at":1.1,"width":2.7,"sill":0.65,"head":2.45,"glass":"kg-glass"}

// Three gables create a child-scaled skyline instead of one institutional roof.
{"t":"roof","id":"roof-north","level":"north-g","type":"gable","ridgeAxis":"x","pitch":0.48,"overhang":0.75,"eave":3.6,"x":9,"y":4,"w":22,"d":8}
{"t":"opening","id":"sun-skylight-west","on":"roof-north","kind":"window","at":11.7,"up":1.6,"width":1.4,"glass":"kg-glass"}
{"t":"opening","id":"sun-skylight-east","on":"roof-north","kind":"window","at":16,"up":1.6,"width":1.4,"glass":"kg-glass"}
{"t":"opening","id":"sky-skylight-west","on":"roof-north","kind":"window","at":22.2,"up":1.6,"width":1.4,"glass":"kg-glass"}
{"t":"opening","id":"sky-skylight-east","on":"roof-north","kind":"window","at":26.5,"up":1.6,"width":1.4,"glass":"kg-glass"}
{"t":"roof","id":"roof-west","level":"west-g","type":"gable","ridgeAxis":"y","pitch":0.52,"overhang":0.7,"eave":3.2,"x":4,"y":13,"w":9,"d":12}
{"t":"roof","id":"roof-east","level":"east-g","type":"gable","ridgeAxis":"y","pitch":0.52,"overhang":0.7,"eave":3.4,"x":27,"y":13,"w":9,"d":12}

// The cloister is an outdoor room: deep eaves, timber posts, and a continuous path.
{"t":"paving","id":"north-veranda","use":"walkway","x":13,"y":12,"w":14,"d":2,"material":"kg-paving"}
{"t":"paving","id":"west-veranda","use":"walkway","x":13,"y":14,"w":2,"d":11,"material":"kg-paving"}
{"t":"paving","id":"east-veranda","use":"walkway","x":25,"y":14,"w":2,"d":11,"material":"kg-paving"}
{"t":"asset","id":"timber-cloister","class":"timber garden cloister","material":"kg-timber","parts":[{"x":13,"y":12,"w":14,"d":1.8,"z0":2.55,"z1":2.72},{"x":13,"y":13.8,"w":1.8,"d":11.2,"z0":2.55,"z1":2.72},{"x":25.2,"y":13.8,"w":1.8,"d":11.2,"z0":2.55,"z1":2.72},{"x":13.15,"y":13.25,"w":0.16,"d":0.16,"z0":0,"z1":2.62},{"x":17,"y":13.25,"w":0.16,"d":0.16,"z0":0,"z1":2.62},{"x":21,"y":13.25,"w":0.16,"d":0.16,"z0":0,"z1":2.62},{"x":25.05,"y":13.25,"w":0.16,"d":0.16,"z0":0,"z1":2.62},{"x":14.15,"y":17,"w":0.16,"d":0.16,"z0":0,"z1":2.62},{"x":14.15,"y":21.5,"w":0.16,"d":0.16,"z0":0,"z1":2.62},{"x":25.85,"y":17,"w":0.16,"d":0.16,"z0":0,"z1":2.62},{"x":25.85,"y":21.5,"w":0.16,"d":0.16,"z0":0,"z1":2.62}]}

// Central garden classroom: loop path, sand play, water play, and a mature shade tree.
{"t":"landscape","id":"garden-lawn","x":15,"y":14,"w":10,"d":11,"planting":{"species":"play lawn","count":1}}
{"t":"paving","id":"play-loop","use":"walkway","shape":"ring","cx":20,"cy":19,"r":3.4,"width":1.0,"material":"kg-paving"}
{"t":"asset","id":"sand-garden","class":"raised sand garden","x":16.2,"y":15.6,"w":2.8,"d":2.2,"z0":0.03,"z1":0.28,"material":"kg-sand"}
{"t":"asset","id":"water-table","class":"outdoor water table","x":21.4,"y":15.8,"w":2.2,"d":1.1,"z0":0.04,"z1":0.66,"material":"kg-sky"}
{"t":"asset","id":"play-house","class":"timber play house","material":"kg-timber","parts":[{"x":21.4,"y":21.1,"w":2.2,"d":2.2,"z0":0.04,"z1":1.45},{"x":21.15,"y":20.85,"w":2.7,"d":2.7,"z0":1.45,"z1":1.62}]}
{"t":"tree","id":"courtyard-maple","x":18.2,"y":21.4,"canopy":3.8,"species":"maple"}
{"t":"tree","id":"north-oak","x":5.2,"y":6.2,"canopy":4.2,"species":"oak"}
{"t":"tree","id":"east-birch","x":34.7,"y":7.2,"canopy":3.2,"species":"birch"}

// A generous, legible entrance arrives between the two side pavilions.
{"t":"paving","id":"entry-path","use":"walkway","x":18.5,"y":24,"w":3,"d":6,"material":"kg-paving"}
{"t":"asset","id":"entry-gate","class":"timber entry gate","material":"kg-timber","parts":[{"x":18.3,"y":26.5,"w":0.22,"d":0.22,"z0":0,"z1":2.8},{"x":21.5,"y":26.5,"w":0.22,"d":0.22,"z0":0,"z1":2.8},{"x":18.3,"y":26.5,"w":3.42,"d":0.35,"z0":2.55,"z1":2.85}]}
{"t":"landscape","id":"site-meadow","x":0,"y":0,"w":40,"d":30,"planting":{"species":"native meadow","count":42}}
{"t":"landscape","id":"front-rain-garden","x":5,"y":26,"w":11,"d":3,"planting":{"species":"native grasses","count":18}}
{"t":"landscape","id":"front-orchard","x":24,"y":26,"w":11,"d":3,"planting":{"species":"fruit trees","count":5}}
{"t":"fence","id":"secure-north","kind":"picket","from":[2,2],"to":[38,2],"height":1.35}
{"t":"fence","id":"secure-west","kind":"picket","from":[2,2],"to":[2,29],"height":1.35}
{"t":"fence","id":"secure-east","kind":"picket","from":[38,2],"to":[38,29],"height":1.35}
{"t":"fence","id":"secure-south-w","kind":"picket","from":[2,29],"to":[18.3,29],"height":1.35}
{"t":"fence","id":"secure-south-e","kind":"picket","from":[21.7,29],"to":[38,29],"height":1.35}
{"t":"street","id":"front-street","name":"GARDEN LANE","from":[-4,35],"to":[44,35],"width":8,"lanes":2,"class":"local"}
{"t":"curb","id":"front-curb","from":[-4,31.8],"to":[44,31.8]}
{"t":"paving","id":"front-sidewalk","use":"walkway","x":-2,"y":30,"w":44,"d":1.8,"material":"kg-paving"}

// Furniture makes the plans read as real teaching environments.
{"t":"furniture","id":"sun-table-a","type":"round-table-6","level":"north-g","x":2.6,"y":2.1,"w":1.4,"d":1.4,"height":0.52,"material":"kg-timber"}
{"t":"furniture","id":"sun-table-b","type":"round-table-6","level":"north-g","x":7.3,"y":4.2,"w":1.4,"d":1.4,"height":0.52,"material":"kg-timber"}
{"t":"furniture","id":"sun-cubby-run","type":"cubby-run","level":"north-g","x":0.5,"y":6.7,"w":2.2,"d":0.45,"height":1.05,"material":"kg-timber"}
{"t":"furniture","id":"sun-kinder-chair","type":"chair","level":"north-g","x":3.1,"y":3.58,"w":0.38,"d":0.42,"height":0.66}
{"t":"furniture","id":"sun-whiteboard","type":"whiteboard","level":"north-g","x":8.4,"y":6.82,"w":1.7,"d":0.55,"height":1.35}
{"t":"furniture","id":"sky-table-a","type":"round-table-6","level":"north-g","x":13.2,"y":2.1,"w":1.4,"d":1.4,"height":0.52,"material":"kg-timber"}
{"t":"furniture","id":"sky-table-b","type":"round-table-6","level":"north-g","x":17.4,"y":4.2,"w":1.4,"d":1.4,"height":0.52,"material":"kg-timber"}
{"t":"furniture","id":"sky-toy-shelf","type":"toy-shelf","level":"north-g","x":19.1,"y":6.7,"w":2.2,"d":0.45,"height":0.68,"material":"kg-timber"}
{"t":"furniture","id":"sky-student-desk","type":"student-desk","level":"north-g","x":12.1,"y":1.1,"w":0.6,"d":0.5,"height":0.64}
{"t":"furniture","id":"sky-student-chair","type":"student-chair","level":"north-g","x":12.2,"y":1.65,"w":0.38,"d":0.42,"height":0.66}
{"t":"furniture","id":"sky-teacher-desk","type":"teacher-desk","level":"north-g","x":19.6,"y":1.05,"w":1.45,"d":0.65,"height":0.79}
{"t":"furniture","id":"atelier-table","type":"dining-table","level":"west-g","x":2,"y":2.6,"w":3.4,"d":1.4,"height":0.58,"material":"kg-timber"}
{"t":"furniture","id":"atelier-sink","type":"kitchen-sink","level":"west-g","x":0.5,"y":6.2,"w":1.8,"d":0.55,"height":0.78}
{"t":"furniture","id":"atelier-supply-shelf","type":"shelving","level":"west-g","x":7.85,"y":5.1,"w":0.45,"d":1.6,"height":1.2}
{"t":"asset","id":"atelier-easel","class":"easel","x":10.4,"y":18.7,"w":1.1,"d":0.8,"z0":0,"z1":1.2}
{"t":"asset","id":"atelier-sand-table","class":"sand-table","x":8.8,"y":18.8,"w":1.1,"d":0.9,"z0":0,"z1":0.72}
{"t":"asset","id":"story-tier","class":"story-steps","x":5.2,"y":22,"w":5.8,"d":1.5,"z0":0,"z1":0.75,"material":"kg-timber"}
{"t":"asset","id":"story-play-mat","class":"play-mat","x":10.3,"y":20.75,"w":2.1,"d":1.1,"z0":0,"z1":0.04}
{"t":"asset","id":"story-book-display","class":"classroom-book-display","x":11.35,"y":23.9,"w":1,"d":0.4,"z0":0,"z1":0.75}
{"t":"furniture","id":"story-loveseat","type":"loveseat","level":"west-g","x":0.6,"y":7.75,"w":1.45,"d":0.78,"height":0.75}
{"t":"furniture","id":"story-coffee-table","type":"coffee-table","level":"west-g","x":2.45,"y":7.9,"w":0.9,"d":0.5,"height":0.38}
{"t":"furniture","id":"story-sofa","type":"sofa","level":"west-g","x":3.8,"y":7.75,"w":1.8,"d":0.8,"height":0.72}
{"t":"furniture","id":"commons-table","type":"dining-table","level":"east-g","x":2,"y":2.1,"w":4.2,"d":1.3,"height":0.66,"material":"kg-timber"}
{"t":"furniture","id":"commons-sofa","type":"sofa","level":"east-g","x":0.65,"y":0.55,"w":1.8,"d":0.8,"height":0.72}
{"t":"furniture","id":"commons-coffee-table","type":"coffee-table","level":"east-g","x":2.65,"y":0.75,"w":0.9,"d":0.5,"height":0.38}
{"t":"furniture","id":"commons-loveseat","type":"loveseat","level":"east-g","x":4,"y":0.5,"w":1.45,"d":0.78,"height":0.75}
{"t":"furniture","id":"commons-armchair","type":"armchair","level":"east-g","x":6.1,"y":3.9,"w":0.72,"d":0.72,"height":0.72}
{"t":"furniture","id":"teaching-island","type":"island","level":"east-g","x":1.05,"y":8,"w":2.55,"d":1,"height":0.82,"material":"kg-timber"}
{"t":"furniture","id":"teaching-counter","type":"counter","level":"east-g","x":0.55,"y":10.85,"w":1.1,"d":0.55,"height":0.72}
{"t":"furniture","id":"teaching-sink","type":"kitchen-sink","level":"east-g","x":2.45,"y":5.85,"w":0.9,"d":0.55,"height":0.82}
{"t":"furniture","id":"teaching-range","type":"stove","level":"east-g","x":3.45,"y":5.85,"w":0.72,"d":0.55,"height":0.72}
{"t":"furniture","id":"teaching-fridge","type":"fridge","level":"east-g","x":3.65,"y":7,"w":0.65,"d":0.7,"height":1.65}
{"t":"furniture","id":"child-toilet-a","type":"toilet","level":"east-g","x":5,"y":6.1,"w":0.34,"d":0.55,"height":0.42}
{"t":"furniture","id":"child-toilet-b","type":"toilet","level":"east-g","x":6,"y":6.1,"w":0.34,"d":0.55,"height":0.42}
{"t":"furniture","id":"child-washbasin","type":"sink","level":"east-g","x":7.65,"y":7.25,"w":0.55,"d":0.48,"height":0.8}
{"t":"furniture","id":"staff-desk","type":"desk","level":"east-g","x":5.2,"y":9.3,"w":1.8,"d":0.8,"height":0.74}
{"t":"furniture","id":"staff-storage","type":"shelving","level":"east-g","x":7.8,"y":10.9,"w":0.45,"d":1.5,"height":1.8}

// Scale figures make the authored interior view read at a child's eye level.
{"t":"asset","id":"commons-child","class":"person-child","x":34.2,"y":15.2,"w":0.35,"d":0.35,"z0":0,"z1":1.05}
{"t":"asset","id":"sun-seated-child","class":"person-seated","x":13,"y":6.55,"w":0.42,"d":0.42,"z0":0,"z1":0.85}

{"t":"view","id":"site:learning-courtyard","mode":"site","label":"LEARNING COURTYARD","cameraElevation":48,"cameraAzimuth":225}
{"t":"view","id":"interior:family-commons","mode":"interior","building":"east-wing","level":"east-g","label":"FAMILY COMMONS + TEACHING KITCHEN","cameraElevation":29,"cameraAzimuth":215}
{"t":"materialdef","id":"kg-clay","of":"terracotta","value":80,"accent":"#c87959","hatch":"masonry","body":{"roughness":0.9}}
{"t":"materialdef","id":"kg-timber","of":"siding","value":72,"accent":"#b88b5e","hatch":"timber","body":{"roughness":0.72}}
{"t":"materialdef","id":"kg-glass","of":"glass","value":72,"body":{"type":"MeshPhysicalMaterial","transmission":0.9,"ior":1.5,"roughness":0.05}}
{"t":"materialdef","id":"kg-paving","of":"paving","value":80,"accent":"#d6c7ad","body":{"roughness":0.92}}
{"t":"materialdef","id":"kg-sand","of":"render","value":80,"accent":"#d7b974","body":{"roughness":0.96}}
{"t":"materialdef","id":"kg-sky","of":"paint","value":58,"accent":"#5d9fb6","body":{"roughness":0.58}}
// Grafted verbatim from packs/classroom.ndjson; bimtex models have no include mechanism.
{"t":"materialdef","id":"pack-cls-birch","of":"timber","value":80,"hatch":"timber","body":{"roughness":0.68}}
{"t":"materialdef","id":"pack-cls-sun","of":"paint","value":72,"accent":"#e8a83c","body":{"roughness":0.6}}
{"t":"materialdef","id":"pack-cls-sky","of":"paint","value":58,"accent":"#4f93b8","body":{"roughness":0.6}}
{"t":"materialdef","id":"pack-cls-coral","of":"paint","value":58,"accent":"#d9614c","body":{"roughness":0.6}}
{"t":"materialdef","id":"pack-cls-moss","of":"cloth","value":58,"accent":"#7a9a5b"}
{"t":"materialdef","id":"pack-cls-sand","of":"gravel","value":72,"accent":"#c5a56b","body":{"roughness":0.94}}
{"t":"look","id":"use-kinder-round-table-2","for":"furniture:round-table-6","use":"kinder-round-table-2"}
{"t":"look","id":"use-kinder-chair-2","for":"furniture:chair","use":"kinder-chair-2"}
{"t":"look","id":"use-cubby-run","for":"furniture:cubby-run","use":"cubby-run"}
{"t":"look","id":"use-story-steps","for":"asset:story-steps","use":"story-steps"}
{"t":"look","id":"use-easel-double-2","for":"asset:easel","use":"easel-double-2"}
{"t":"look","id":"use-toy-shelf","for":"furniture:toy-shelf","use":"toy-shelf"}
{"t":"look","id":"use-sand-table-2","for":"asset:sand-table","use":"sand-table-2"}
{"t":"look","id":"use-play-mat","for":"asset:play-mat","use":"play-mat"}
{"t":"look","id":"use-primary-student-desk","for":"furniture:student-desk","use":"primary-student-desk"}
{"t":"look","id":"use-primary-student-chair","for":"furniture:student-chair","use":"primary-student-chair"}
{"t":"look","id":"use-teacher-workstation","for":"furniture:teacher-desk","use":"teacher-workstation"}
{"t":"look","id":"use-mobile-whiteboard","for":"furniture:whiteboard","use":"mobile-whiteboard"}
{"t":"look","id":"use-classroom-book-display","for":"asset:classroom-book-display","use":"classroom-book-display"}

// Grafted verbatim from packs/interiors.ndjson; bimtex models have no include mechanism.
{"t":"materialdef","id":"pack-int-linen","of":"cloth","value":72,"body":{"sheen":0.7,"sheenRoughness":0.6}}
{"t":"materialdef","id":"pack-int-linen-soft","of":"cloth","value":80,"body":{"sheenRoughness":0.55}}
{"t":"materialdef","id":"pack-int-oak","of":"timber","value":58,"hatch":"timber","body":{"roughness":0.62}}
{"t":"materialdef","id":"pack-int-clay","of":"plaster","value":72,"body":{"roughness":0.86}}
{"t":"materialdef","id":"pack-int-stone","of":"stone","value":86,"body":{"roughness":0.3}}
{"t":"materialdef","id":"pack-int-black","of":"membrane","value":20,"body":{"roughness":0.44,"metalness":0.3}}
{"t":"materialdef","id":"pack-int-steel","of":"steel","value":72,"body":{"roughness":0.3,"metalness":0.6}}
{"t":"materialdef","id":"pack-int-brass","of":"brass","value":58,"accent":"#b08d52","body":{"metalness":0.75}}
{"t":"materialdef","id":"pack-int-china","of":"plaster","value":92,"body":{"roughness":0.22}}
{"t":"look","id":"use-base-run-2","for":"furniture:counter","use":"base-run-2"}
{"t":"look","id":"use-undermount-sink-2","for":"furniture:kitchen-sink","use":"undermount-sink-2"}
{"t":"look","id":"use-slide-in-range-2","for":"furniture:stove","use":"slide-in-range-2"}
{"t":"look","id":"use-tall-fridge-2","for":"furniture:fridge","use":"tall-fridge-2"}
{"t":"look","id":"use-wall-hung-wc-2","for":"furniture:toilet","use":"wall-hung-wc-2"}
{"t":"look","id":"use-two-cushion-lounge-sofa","for":"furniture:sofa","use":"two-cushion-lounge-sofa"}
{"t":"look","id":"use-three-bay-kitchen-island","for":"furniture:island","use":"three-bay-kitchen-island"}
{"t":"look","id":"use-fluted-drum-coffee-table","for":"furniture:coffee-table","use":"fluted-drum-coffee-table"}
{"t":"look","id":"use-oak-trestle-writing-desk","for":"furniture:desk","use":"oak-trestle-writing-desk"}
{"t":"look","id":"use-open-shelf-unit","for":"furniture:shelving","use":"open-shelf-unit"}
{"t":"look","id":"use-wall-basin","for":"furniture:sink","use":"wall-basin"}

// Grafted verbatim from packs/furniture.ndjson; bimtex models have no include mechanism.
{"t":"materialdef","id":"pack-ash","of":"timber","value":80,"accent":"#cbbfa9"}
{"t":"materialdef","id":"pack-oatmeal","of":"boucle","value":80,"accent":"#d7cbbb"}
{"t":"look","id":"use-tub-armchair-2","for":"furniture:armchair","use":"tub-armchair-2"}
{"t":"look","id":"use-trestle-table","for":"furniture:dining-table","use":"trestle-table"}
{"t":"look","id":"use-compact-loveseat-2","for":"furniture:loveseat","use":"compact-loveseat-2"}

// These five authored site constructions are intentionally plain blocks. Their
// class-specific looks preserve that geometry while satisfying the dressed-model contract.
{"t":"lookdef","id":"kg-cloister-block","for":"asset:timber garden cloister","body":{"type":"Mesh","material":"kg-timber","geometry":{"type":"BoxGeometry","width":1,"height":1,"depth":1},"position":[0,0.5,0]}}
{"t":"lookdef","id":"kg-sand-garden-block","for":"asset:raised sand garden","body":{"type":"Mesh","material":"kg-sand","geometry":{"type":"BoxGeometry","width":1,"height":1,"depth":1},"position":[0,0.5,0]}}
{"t":"lookdef","id":"kg-water-table-block","for":"asset:outdoor water table","body":{"type":"Mesh","material":"kg-sky","geometry":{"type":"BoxGeometry","width":1,"height":1,"depth":1},"position":[0,0.5,0]}}
{"t":"lookdef","id":"kg-play-house-block","for":"asset:timber play house","body":{"type":"Mesh","material":"kg-timber","geometry":{"type":"BoxGeometry","width":1,"height":1,"depth":1},"position":[0,0.5,0]}}
{"t":"lookdef","id":"kg-entry-gate-block","for":"asset:timber entry gate","body":{"type":"Mesh","material":"kg-timber","geometry":{"type":"BoxGeometry","width":1,"height":1,"depth":1},"position":[0,0.5,0]}}

// Grafted verbatim from packs/site-assets.ndjson; bimtex models have no include mechanism.
{"t":"look","id":"use-seated-figure","for":"asset:person-seated","use":"seated-figure"}
{"t":"look","id":"use-child-figure","for":"asset:person-child","use":"child-figure"}
validates clean
  • ✓ storeys stack without gaps; mezzanines fit their host
  • ✓ every opening fits inside its wall, in length and height
  • ✓ upper-storey walls have support below
  • ✓ rooms stay inside the footprint and do not overlap
  • ✓ stairs clear walls, land in circulation, and have a void above
  • ✓ risers stay within the schema limits
  • ✓ footprint clears setbacks; fences stay on the parcel
