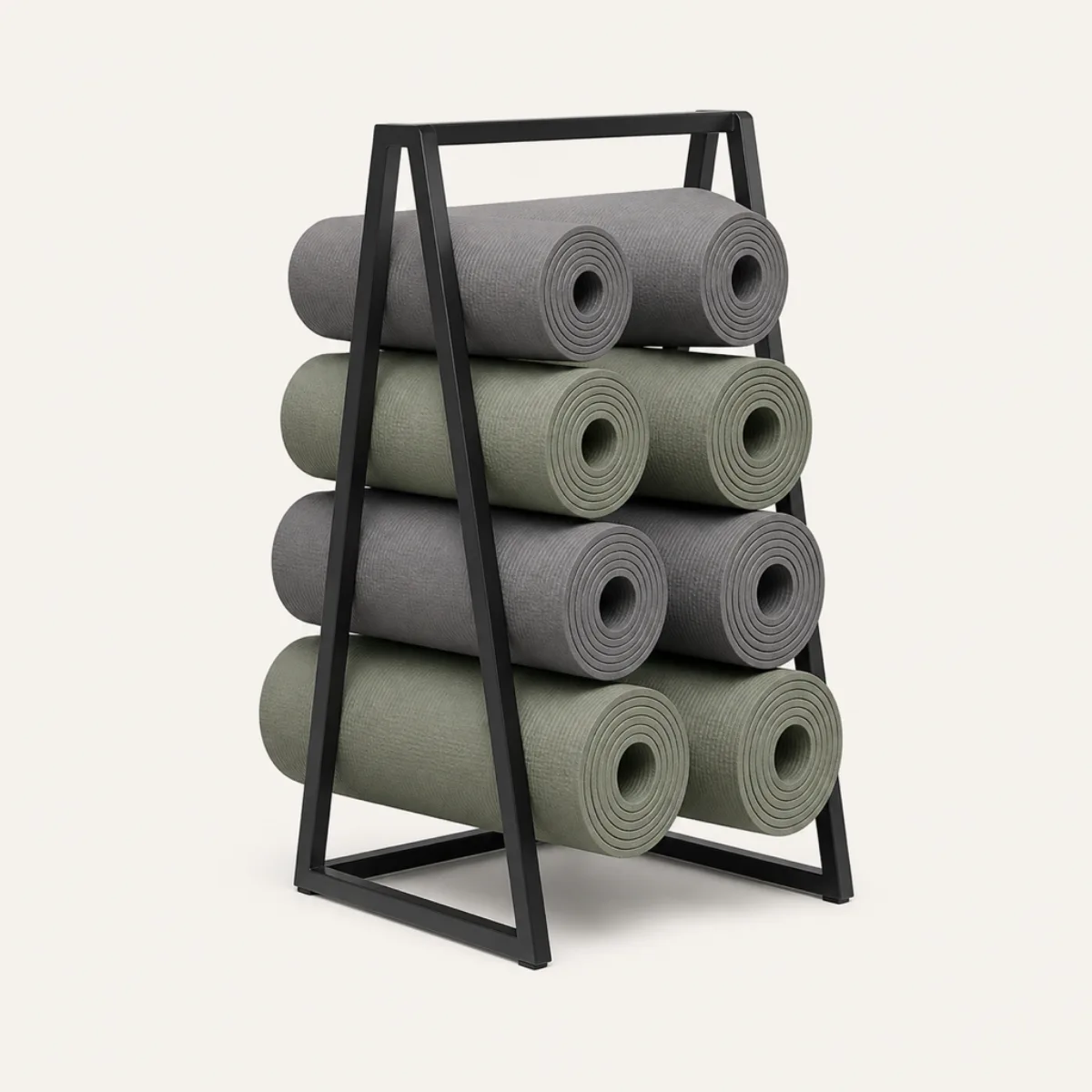

Mat stack
mat-stack
dresses asset:mat-stack
— and nothing else. Appearance is invisible to the drawing set, so adding this changes no
plan, no section and no elevation.
- 7of 500 meshes
- 1slot
- 1finish
Drag to orbit · scroll to zoom
$surface
This definition leaves
$surface
open, and a look line fills them. Every combination is one body — same
geometry, same selector, same sheets — so the block below rewrites itself as you pick.
Only materials are slottable: a size would have to agree with the plan, so it stays on
the entity.
Paste this
Every part: the 2 materialdefs the body resolves to, then the definition. Copying the lookdef alone still compiles and still validates — it just renders grey.
{"t":"materialdef","id":"pack-fitness-frame","of":"painted-metal","value":20,"accent":"#34383b","body":{"roughness":0.46,"metalness":0.34}}
{"t":"materialdef","id":"pack-fitness-sage","of":"cloth","value":58,"accent":"#879586"}
{"t":"lookdef","id":"mat-stack","for":"asset:mat-stack","desc":"Neat stack of thick rectangular exercise mats for floor training.","slots":{"surface":"pack-fitness-sage"},"preview":{"projection":"perspective","azimuth":28,"elevation":20,"fov":34,"margin":1},"body":{"type":"Group","children":[{"type":"bimtex:Run","count":2,"from":[-0.31,0,0],"to":[0.31,0,0],"children":[{"type":"Mesh","material":"pack-fitness-frame","geometry":{"type":"RoundedBoxGeometry","width":0.08,"height":0.05,"depth":0.7,"radius":0.012,"segments":2},"position":[0,0.025,0]}]},{"type":"bimtex:Run","count":2,"from":[-0.31,0,0],"to":[0.31,0,0],"children":[{"type":"Mesh","material":"pack-fitness-frame","geometry":{"type":"TubeGeometry","path":[[0,0.05,-0.29],[0,0.56,-0.22],[0,0.05,0.29]],"radius":0.025,"radialSegments":10,"tubularSegments":16}}]},{"type":"Mesh","material":"pack-fitness-frame","geometry":{"type":"RoundedBoxGeometry","width":0.7,"height":0.05,"depth":0.08,"radius":0.012,"segments":2},"position":[0,0.575,-0.2]},{"type":"bimtex:Run","count":4,"from":[-0.16,0.14,0.02],"to":[-0.16,0.5,0.02],"children":[{"type":"Mesh","material":"$surface","geometry":{"type":"CylinderGeometry","radiusTop":0.09,"radiusBottom":0.09,"height":0.48,"radialSegments":24,"openEnded":true},"rotation":[1.5708,0,0]}]},{"type":"bimtex:Run","count":4,"from":[-0.16,0.14,0.02],"to":[-0.16,0.5,0.02],"children":[{"type":"Mesh","material":"$surface","geometry":{"type":"TorusGeometry","radius":0.055,"tube":0.012,"radialSegments":8,"tubularSegments":24},"position":[0,0,0.247]}]},{"type":"bimtex:Run","count":4,"from":[0.16,0.14,0.02],"to":[0.16,0.5,0.02],"children":[{"type":"Mesh","material":"$surface","geometry":{"type":"CylinderGeometry","radiusTop":0.09,"radiusBottom":0.09,"height":0.48,"radialSegments":24,"openEnded":true},"rotation":[1.5708,0,0]}]},{"type":"bimtex:Run","count":4,"from":[0.16,0.14,0.02],"to":[0.16,0.5,0.02],"children":[{"type":"Mesh","material":"$surface","geometry":{"type":"TorusGeometry","radius":0.055,"tube":0.012,"radialSegments":8,"tubularSegments":24},"position":[0,0,0.247]}]}],"scale":[1.05,2.18,1.1]}}Or take the whole pack, which brings every entry and every material at once:
cat packs/fitness.ndjson model.ndjson > dressed.ndjson
